Investigation of Dracocephalum extract based mostly on bulk and nanometer dimension as inexperienced corrosion inhibitor for delicate metal in numerous corrosive media

Characterization of the nanosized plant extract

Dynamic gentle scattering is used for measuring common particle diameter, and particle diameter distribution of nanosized particles dispersed within the liquid. Extract Biomolecules like proteins, enzymes, terpenoids, and flavonoids cofactors play each capping, and lowering position. Moreover, attributable to sturdy binding potential with amino acid residues (carbonyl group), agglomeration habits was prevented, and stability of medium was offered. For a greater understanding of the true dimension of nanoparticles, the nanosizer approach used for calculating particle dimension, and said by SBL (Statistical Bin Limits) evaluation. For this suggest, discount of agglomeration fault to state precise particle dimension was finished by omitting hydrodynamic radius. Determine 1 reported the histogram of the SBL nanosizer of NPs, which confirmed the imply diameter of the dimensions of the particle is ~ 64.75 nm for nanostructures. Reported outcomes demonstrated slim dimension distribution, and homogenous dispersity of NPs.

Corrosion inhibition examine

First, by immersing the working electrode in 0.5 M H₂SO₄, and 1.0 M HCl resolution with out, and with Dracocephalum extract based mostly on bulk, and nanometer dimension for 1800s, open-circuit potential (OCP) was stabilized (Fig. 2), after which electrochemical checks have been carried out. Determine 2 illustrated that the presence of extract in acidic options significantly modified the OCP curves.

The corrosion habits of st-37 in 0.5 M H₂SO₄, and 1.0 M HCl options was decided by EIS, and PP strategies beneath completely different concentrations of extract based mostly on bulk, and nano dimension.

Electrochemical impedance Spectroscopy, Bode, and Bode part evaluation in H₂SO₄ and HCl media

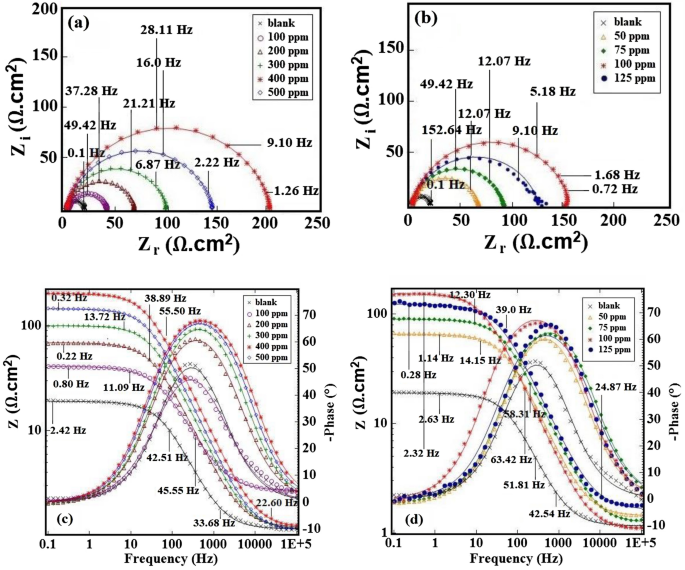

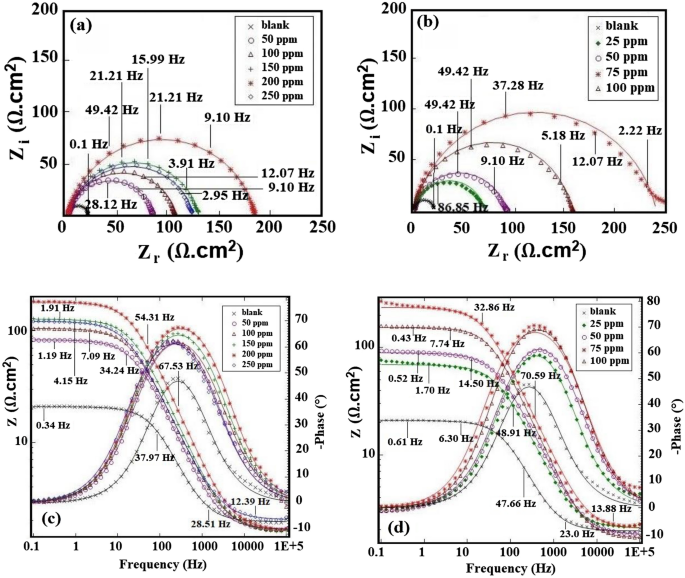

The EIS is a non-destructive, and really efficient methodology for evaluating corrosion processes on the metal-corrosive electrolyte interface. The aim of EIS is to see how completely different concentrations of inexperienced inhibitors have an effect on the impedance habits of delicate metal in 0.5 M H₂SO₄, and 1.0 M HCl. Figures 3, and 4 show Nyquist plots, Bode plots, and modifications in part angle for st-37 in 0.5 M H₂SO₄, and 1.0 M HCl options, respectively, with various portions of plant extract relying on bulk, and nanosize. Just one capacitive semicircle is seen within the Nyquist plots for the examined plant extract. The existence of cost switch resistance (R_ct) mixed with the influence of ionic double-layer capacitance (C_dl) would possibly clarify this phenomenon⁴⁴. The final semi-circle form of the curves is pretty fixed throughout the entire inhibitor focus vary, indicating that no change in corrosion mechanism has occurred on account of the addition of plant extract⁴⁵.

Excessive-frequency capacitance circuits are usually generated by cost switch resistance, as demonstrated in Figs. 3a, and 4a. It may be seen that including inhibitor causes a rise within the radius of the capacitive ring, and inhibits electrochemical processes to some extent. It seems that including the extract to delicate metal reduces the speed of corrosion. Tables 2, and three present the EIS traits for delicate metal with varied concentrations of Dracocephalum extract (bulk, and nanosize) in acidic media, together with the goodness of match (chi-square), resolution resistance (R_S), double layer capacitance (C_dl), cost switch resistance (R_ct), and the diploma of floor protection (θ = IE_I/100).

Desk 2 Corrosion parameters derived from Nyquist curves for st-37 in H₂SO₄ resolution within the absence, and presence of various concentrations of inhibitor based mostly on bulk, and nano dimension, at 25 ± 1 °C.

Desk 3 Corrosion parameters derived from Nyquist curves for st-37 in HCl resolution within the absence, and presence of various concentrations of inhibitor based mostly on bulk, and nano dimension, at 25 ± 1 °C.

These semi-circles additionally present that IE_I% will increase with a rise in inhibitor concentrations. It’s famous that the extract with nanosize possess higher IE_I% than the majority extract, in the identical quantity, in each options.

Additionally, R_ct will increase when the focus of Dracocephalum will increase, owing to enhanced extract protection on the metal floor, and better inhibitor shielding effectivity in opposition to ion penetration of the corrosive medium⁴⁶. When the inhibitor focus is as much as 200 ppm, and 75 ppm for 0.5 M H₂SO₄, and as much as 400 ppm, and 100 ppm for 1.0 M HCl containing bulk, and nanosize of the extract, respectively, the R_ct, and IE_I% reaches the very best worth (90, 92, 91, and 88%). This rise reveals that the inhibitor builds an adsorption layer on the delicate metal alloy’s floor, stopping corrosion. R_ct begins to lower because the focus of Dracocephalum extract will increase, because the inhibitor is desorbed from the metallic floor. Because the extract focus grew, the electrical double-layer capacitor, C_dl, dropped, which can be ascribed to a lower within the native electrical double layer fixed⁴⁷. On this case, inhibitor molecules adhered to the metal floor, and changed the unique water molecules that have been current within the metal floor’s interface layer. The C_dl decreased because the inhibitor focus grew as a result of the inhibitor molecules had a decrease dielectric fixed than water molecules, inflicting the inhibitor molecules to be loosely organized within the interface layer⁴⁸. It was found that the extract would possibly produce an inhibitor coating on the metal floor to stop corrosion, indicating that Dracocephalum extract has excessive inhibition effectivity for delicate metal.

The rise in part angle with growing extract content material, as seen within the Bode plots in Figs. 3c,d, and 4c,d, additional helps the prevention of corrosion¹³. The roughness of the electrode floor is linked to the worth of the part angle in these figures. The upper the worth of θ, decrease is the floor roughness. Because the inhibitor focus will increase, the floor roughness decreases, implying that corrosion decreases.

The equal Randle’s circuit mannequin (Fig. 5) was used to look at the entire impedance curves illustrated in Figs. 3, and 4. That is made up of a collection resolution resistance (R_S), a parallel resistance (R_ct), and capacitor mixture (C_dl).

Potentiodynamic polarization in H₂SO₄ and HCl media

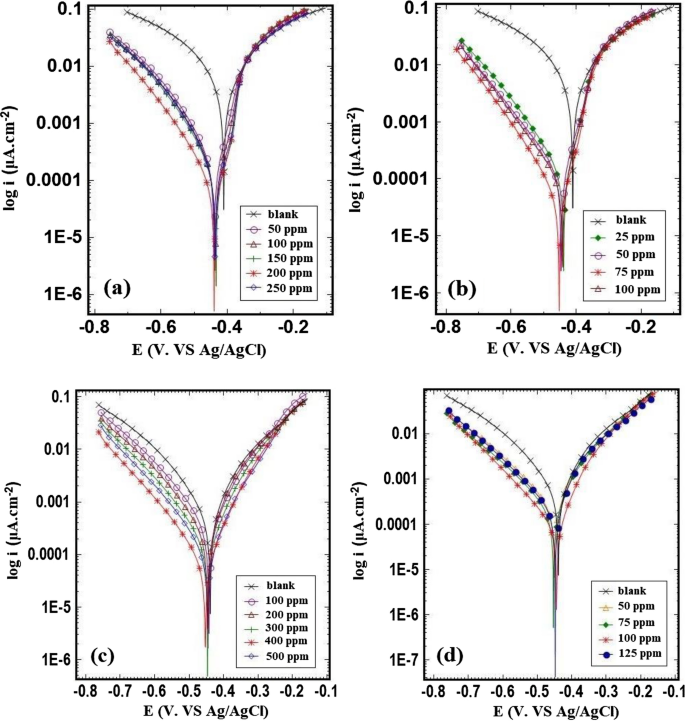

Determine 6 depicts the cathodic, and anodic polarization curves of delicate metal following immersion in 0.5 M H₂SO₄, and 1.0 M HCl options within the absence, and presence of assorted quantities of extract. The experimental outcomes together with the corrosion present density (i_corr), the cathodic, and anodic Tafel slopes (β_c, and β_a), the corrosion potential (E_corr), the inhibition effectivity (IE_p%), and the diploma of floor protection (θ) for various options are reported in Desk 4. The corrosion present density was calculated utilizing the intercept of extrapolated cathodic, and anodic Tafel traces on the corrosion potential. Additionally, the IE_p% was calculated utilizing Eq. (2).

Desk 4 Corrosion parameters derived from polarization curves for st-37 in sulfuric acid resolution with (a) inhibitor, (b) nano inhibitor, and in hydrochloric acid resolution with (c) inhibitor, (d) nano inhibitor in uninhibited, and inhibited resolution at 25 ± 1 °C.

From the experimental values, it may be noticed that the corrosion present density decreases considerably with a rise in inhibitor focus as much as 200 ppm, and 75 ppm for 0.5 M H₂SO₄, and as much as 400 ppm, and 100 ppm for 1.0 M HCl containing bulk, and nano dimension of the extract, respectively, helps the retardation of the corrosion course of⁴⁹. The decreased present density within the presence of inhibitor in all 4 options means that the metallic floor is passivated because of the creation of the inhibitor layer⁵⁰. The outcomes reveal that i_corr of delicate metal decreased from 1427 μA/cm to 151 μA/cm, and 1427 μA/cm to 91 μA/cm, and the IE% elevated to 89%, and 94%, and in addition, 752 μA/cm to 73 μA/cm, and 752 μA/cm to 87 μA/cm, and the IE% elevated to 90%, and 88%, for H₂SO₄, and HCl options with bulk, and nano dimension of the extract, respectively.

The findings of the investigation, recommend that the nano extract of the plant has larger inhibitory properties than the common extract.

Moreover, variations within the values of β_c, and β_a in comparison with clean options present that these inhibitors safeguard the corrosion course of by adsorbing inhibitor molecules on each anodic, and cathodic websites.

With the addition of inhibitors, there’s a distinct change within the cathodic, and anodic components of curves in Tafel plots of H₂SO₄ resolution. Consequently, it is known as a mixed-type inhibitor. From Fig. 6c,d, and Desk 4, in hydrochloric acid resolution, the form of the anodic, and cathodic curves, and the Tafel parameter (β_c, and β_a) didn’t change considerably after utilizing the extract as an inhibitor, however in sulfuric acid resolution β_a modified (Fig. 6a,b), and which means that the inhibitor acts as a each anodic, and cathodic inhibitor (blended one), with predominant anodic impact in H₂SO₄ medium. However, for H₂SO₄, and HCl options, the utmost shift in E_corr worth is constructive/damaging aspect 41, and 15 mV, respectively, and a literature survey revealed that if a shift in corrosion potential is lower than ± 85 mV with respect to the clean resolution, the inhibitor acts as a mixed-type inhibitor; thus, this inhibitor is a mixed-type inhibitor⁵¹.

Primarily based on the above evaluation, the values of IE_I%, and IE_P% rise because the focus of inhibitors rises, with bulk, and nano dimension of extract in acidic media. The imply distinction between the utmost values of %IE_I, and %IE_P utilizing the very best focus of extract with bulk and nano dimension is 1.0, and a couple of.0%, in H₂SO₄, and 1.0, and 0.0%, in HCl options, respectively.

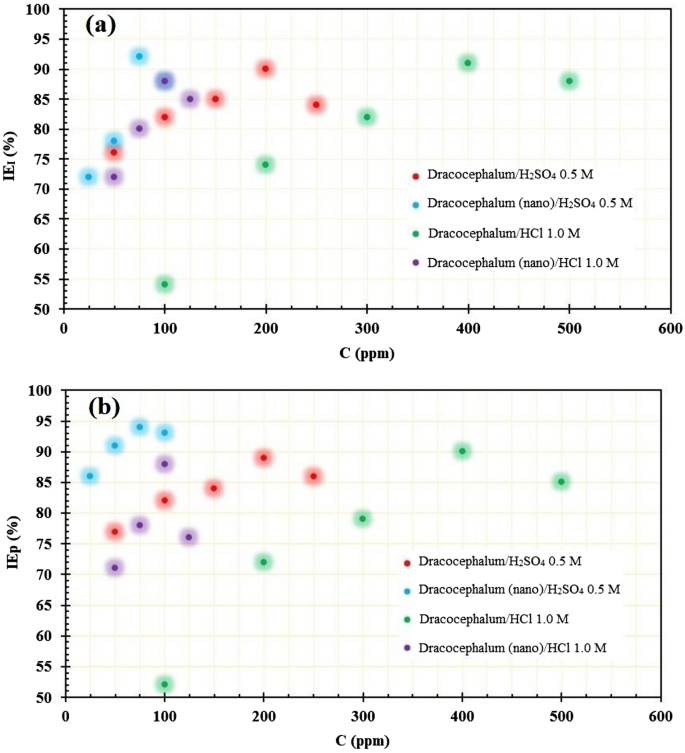

Determine 7 reveals the affect of inhibitor focus (ppm) on inhibition effectivity (IEp, and IE_I, %) for st-37 metal in 0.5 M H₂SO₄, and 1.0 M HCl at 25 ± 1 °C, as measured by impedance, and polarization. It has been found that when the focus of extract will increase, the effectiveness of inhibition will increase. Inhibition effectivity considerably will increase because the extract focus will increase from 0 as much as 200, 75, 400, and 100 ppm in acidic media. When the focus of inhibitor exceeds from above values, the inhibition effectivity decreases barely. The slight change in inhibition effectivity is because of the saturation adsorption of inhibitor molecules on the alloy floor. The upper inhibition effectivity signifies that the Dracocephalum extract is an appropriate corrosion inhibitor for each acidic media.

Adsorption isotherm

Adsorption isotherms serve a essential operate in offering intensive details about the present interplay habits between metallic surfaces, and Dracocephalum extract molecules⁵².

Completely different adsorption isotherm fashions have been utilized on this work to swimsuit the experimental outcomes. The Langmuir isotherm is in good settlement with the experimental findings. The final type of the Langmuir isotherm mannequin is proven in under equation^{53,54,55,56,57}:

$$frac{C}{theta }=frac{1}{{Okay}_{advertisements}}+C$$

(3)

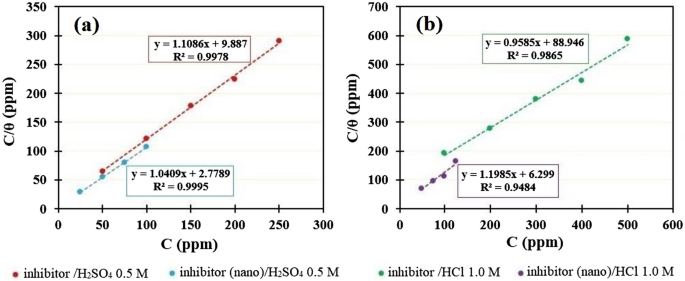

the place, (theta), Okay_{advertisements}, and C are the metallic floor protection, the equilibrium fixed for the adsorption–desorption course of, and the inhibitor focus, respectively. As could be seen, when a graph is drawn between (C/θ), and C, a straight line (R² > 0.9) is fashioned for all samples, as proven in Fig. 8, with a gradient (slope) close to to the unit and an intercept equal to Okay_{advertisements}. The truth that all linear correlation coefficients (R) are nearly equal to at least one reveals that plant extract adsorption on delicate metal surfaces follows the Langmuir adsorption isotherm. The Langmuir isotherm implies inhibitor molecule monolayer adsorption, or the inhibitor molecule occupies one energetic web site on a metallic floor⁵⁸. Moreover, the Langmuir adsorption isotherm revealed that natural parts in plant extracts with polar atoms or teams adsorbed on the metallic floor could work together by way of mutual attraction or repulsion⁵⁹.

The calculated adsorption coefficient, Okay_{advertisements}, was bigger in H₂SO₄ than in HCl, indicating that the adsorption of inhibitor molecules on energetic websites of metal surfaces was simpler in H₂SO₄ than in HCl resolution⁶⁰. The energy, and stability of the adsorbed layer fashioned by nano extract in each options is also evaluated from the upper Okay_{advertisements} worth in comparison with the opposite scenario.

The usual adsorption free vitality (({Delta G}_{ advertisements}^{o})) can be calculated utilizing the Okay_{advertisements} values. Within the context of corrosion inhibition, physisorption, and chemisorption are two adsorption mechanisms which might be often studied⁶¹. For the bodily adsorption, values of the usual adsorption free vitality are till − 20 kJ/mol, whereas these decrease than − 40 kJ/mol are correlated with the chemical adsorption^3,53.

({Delta G}_{ advertisements}^{o}) of the adsorption course of linked with Okay_{advertisements}, and decided utilizing under equation⁶²:

$${{Okay}_{advertisements}}=1/ 10^6 exp (frac{-{Delta G}_{ advertisements}^{o}}{RT})$$

(4)

the place, R, and T are the common gasoline fixed, and thermodynamic temperature, respectively, and 10⁶ factors to the ppm focus (mg/L) of water.

For H₂SO₄ resolution with bulk, and nano dimension of extract the calculated worth of ({Delta G}_{ advertisements}^{o}) is 28.54, and − 31.71 kJ/mol, respectively. For HCl resolution with bulk, and nano dimension of extract, the calculated worth of ({Delta G}_{ advertisements}^{o}) is 22.83, and − 29.70 kJ/mol, respectively. Because of the obtained worth for ({Delta G}_{ advertisements}^{o}), it may be concluded that Dracocephalum adsorption is just not solely chemisorption or physisorption, but in addition consists of complete adsorption (each chemical and bodily), and that the damaging signal of ({Delta G}_{ advertisements}^{o}) signifies that inhibitor molecule adsorption on the metallic floor is spontaneous³. Desk 5 lists the outcomes, together with Okay_{advertisements}, and ({Delta G}_{ advertisements}^{o}).

Desk 5 Thermodynamic traits of adsorption obtained by PP measurements for st-37 in acidic media within the presence of various focus of extract.

A comparability of the current analysis with related research which have used plant extract as a corrosion inhibitor in acidic media offered in Desk 6. It may be concluded that Dracocephalum extract in bulk, and particularly in nanometer dimension is an appropriate candidate for enhancing the corrosion resistance of delicate metal alloy in 0.5 M H₂SO₄, and 1.0 M HCl.

Desk 6 Abstract of comparable research for plant extract as a corrosion inhibitor and compared to this examine.

Mechanism of corrosion inhibition

The examined compounds’ potential to stop carbon metal corrosion is usually owing to their bodily or chemical adsorption on the metallic floor, the place they change H₂O molecules on the metal floor, and type a compact barrier coating⁷¹. Electrostatic contact happens between charged inhibitor molecules, and charged metallic surfaces within the occasion of bodily adsorption (Fig. 9a). Throughout chemical adsorption, the pair electron on the π-electron of a number of bonds, and heteroatoms work together with the iron’s unoccupied d-orbitals (Fig. 9b)¹³. On this work, the values of ({Delta G}_{ advertisements}^{o}) are − 22.83, and 29.70 kJ mol⁻¹, in HCl resolution, indicating that the examined compound molecules are adsorbed by a mixture of chemical, and bodily adsorption. It’s recognized experimentally that the metal floor is positively charged in acidic options, Cl⁻ ions could also be adsorbed on the positively charged metal floor, and subsequently, the protonated inhibitor molecules are adsorbed by way of electrostatic attraction (bodily adsorption). However on the similar time, d-orbitals of iron atoms get a lone pair of electrons on π-electron, and heteroatoms within the extract construction (Chemical adsorption). Within the H₂SO₄ resolution, the values of ({Delta G}_{ advertisements}^{o}) are -28.54, and 31.71 kJ mol⁻¹, however because of the low electron cost density on the floor of ({mathrm{SO}}_{4}^{2-}) ions, the examined compound molecules are extra adsorbed by chemical adsorption.

UV–seen reflection measurements

The current floor evaluation provides the reflectance of metallic specimens earlier than, and after immersion in 0.5 M H₂SO₄, and 1.0 M HCl within the absence, and the presence of the very best inhibitor focus. The outcomes proven in Fig. 10 point out that the reflectance of the st-37 specimen has decreased after immersion in acidic media within the absence of extract. Whereas, including the corrosion inhibitor to the take a look at resolution will increase the reflectance worth till it’s near the specimen reflectance earlier than immersion within the acidic resolution.

Scanning electron and optical microscopic observations

In Figs. 11, 12, optical microscopy, and scanning electron micrographs, have been used to know the floor morphology of delicate metal after 24 h of immersion in 0.5 M H₂SO₄, and 1.0 M HCl, with out, and with the very best focus of extract. Within the case of clean options, Figs. 11(a,b) and 12(a,b) reveal a extremely tough the specimen floor with severe harm, apparent pits, and cracks. Nonetheless, after including a corrosion inhibitor to the acidic media, the corrosion was visibly decreased, and the floor of the samples turned fairly easy (Figs. 11(c–f) and 12(c–f), the corrosion inhibition efficacy confirmed up, and the protecting inhibitor coating was produced. Figures 11(e,f) and 12(e,f) illustrate that within the presence of the optimum inhibitor focus relying on nano dimension, floor corrosion of the alloy decreased considerably. It confirms that the Dracocephalum extract (nano) molecules cowl the metallic floor higher than the majority dimension. When evaluating the photographs associated to each options, it may be noticed that the extract as a corrosion inhibitor in H₂SO₄ has a greater influence than the HCl resolution.
